Ipos2

Ipos2

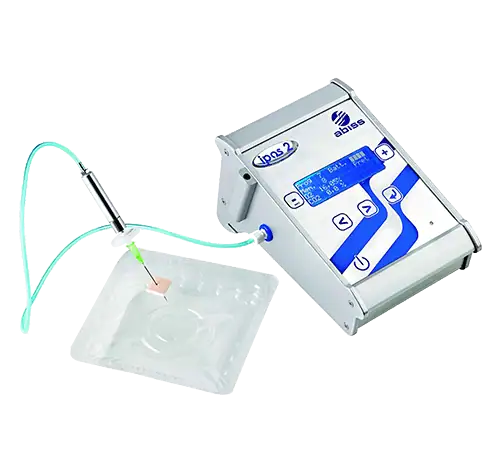

The IPOS2 from Abiss is a portable system for measuring O2 & CO2 levels in modified atmosphere packaging.

Available in 2 Models

  • O2
  • O2 + CO2

Request Quote

IPOS2 O2

The IPOS2 O2/CO2 gas analyzer is a versatile analyzer that can be either portable or bench-mounted. The only gas analyzer with blocked circuit detection, the IPOS2 is the only one capable of offering IP54 level airtightness. Equipped with a large screen, this measurement device is reliable and sturdy, and suitable for inspecting the quality of your modified atmosphere packaging (MAP) or other inerting.

IPOS2 – datasheet

BENEFITS – ALL MODELS

  • Resolution O2 : 0.01%
  • Blocked circuit detection
  • IP54 durability/reliability
  • Adjustable pumping time
  • Programme creation with a threshold alarm
  • Memory storage for the last 400 measurements
  • Traceable via the USB port (optional)

IPOS2 O2 + CO2

The IPOS2 O2/CO2 gas analyzer is a versatile analyzer that can be either portable or bench-mounted. The only gas analyzer with blocked circuit detection, the IPOS2 is the only one capable of offering IP54 level airtightness. Equipped with a large screen, this measurement device is reliable and sturdy, and suitable for inspecting the quality of your modified atmosphere packaging (MAP) or other inerting.

IPOS2 – datasheet

ALL OF THE ABOVE BENEFITS +

  • Resolution CO2: 0.1%

Ipos2

Request Quote

  • Specifications
    Ingress protection of enclosureIP 54
    Measurement devicePortable
    EnclosureAluminium
    Weight2.42 lbs.
    Width5.11 in
    Height3.74 in
    Depth7.08 in
    BatteryNiMH Battery. Battery autonomous up to 16h (or 6,000 measurements) when used continuously and intensively.100% charge in 4h
    Power100-250VAC power supply via external charger – 50/60Hz
    Memory capacity400 Measurements
    Display4 lines of 20 characters LCD
    Digital interfaces1 USB 2.0
    Storage conditions0 – 158°F/0 – 90% HR
    Terms of use0 – 104°F/10 – 90% HR
    O2 Oxygen measurementTechnology : Electrochemical
    Precision : +/- 1% relative
    T90 response time : < 5 s
    Resolution : 0.01%
    Average service life : < 2 years in air under NTP
    CO2 Carbon Dioxide measurementTechnology : NDIR
    Accuracy : +/- 2% full scale
    Resolution : 0,1%
    T90 response time : 7s
    Average service life : 10 years
    Blocked circuit detectionyes
    Pump suction controlyes
    Compensation for atmospheric pressure variationsyes
    Results storageyes
    USB Connectionyes
    Touchscreenyes
    TraceabilityProgram number, storage of measurements, dates, times and alarm thresholds
    OptionsUSB transfer pack: data is transferred via the USB port via the software provided with the option
  • Recommended Accessories
    • Can piercer
    • Needle arm support
    • Needle cleaning tool
  • Every Oxylos Delivered With
    • Calibration certificate
    • A carry case IP67 : 300x225x132 mm
    • 1 Sampling kit
    • 12 Needles
    • 2 Filters
    • 1000 Septums
    • Power supply
    • User manual
    • 1 USB Key
