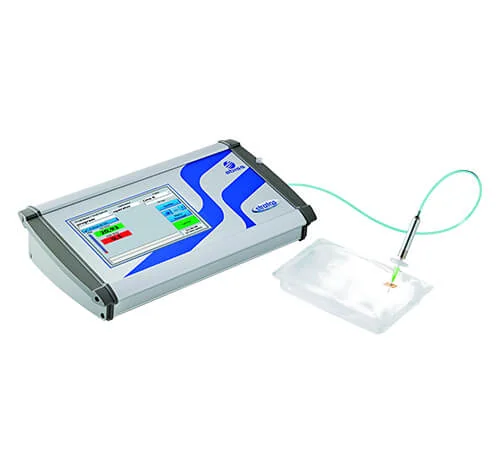

Exos Gas Only

Exos Gas Only

The Gas Only Exos from Abiss is a system for measuring O2 & CO2 levels in modified atmosphere packaging.

Available in 2 Models

  • O2
  • O2 + CO2

Request Quote

EXOS O2

The EXOS O2 is a bench-mounted gas analyzer with a blocked circuit detector. Equipped with a large touchscreen, its aesthetic appeal and the simplicity of its user interface are huge benefits for users. This precision measurement device has a resolution of 0.01% for O2, which is a highly competitive level of performance. The EXOS O2 has everything required for complete traceability. This ABISS device is reliable, durable and highly versatile for inspecting the quality of your modified atmosphere packaging (MAP) or other inerting process.

EXOS GAS – Data Sheet

BENEFITS – ALL MODELS

  • Resolution O2 : 0.01%
  • Intuitive technology
  • Blocked circuit detection
  • Fully dematerialised traceability thanks to a universal spreadsheet
  • 7 days a week remote maintenance
  • Remote connection
  • Automatic measurement triggering

EXOS O2 + CO2

The EXOS O2/CO2 is a bench-mounted gas analyzer with a blocked circuit detector. Equipped with a large touchscreen, its aesthetic appeal and the simplicity of its user interface are huge benefits for users. This measurement device has a resolution of 0.01% for O2, which is a highly competitive level of performance. The EXOS O2/ O2 has everything required for complete traceability. This ABISS appliance is reliable, durable and highly versatile for inspecting the quality of your modified atmosphere packaging (MAP) or other inerting.

EXOS GAS – Data Sheet

ALL OF THE ABOVE BENEFITS +

  • Resolution CO2 : 0.1%

Request Quote

  • Specifications
    Ingress protection of enclosureIP 54
    Measurement deviceBench-mounted
    EnclosureAluminium
    Weight5.5 lbs.
    Width13.38 in
    Height2.95 in
    Depth7.08 in
    Power100-240VAC -50/60Hz – 63W
    Feed pressure60 to 115 PSI (dry and oil free) filtered at 20μm
    Inlet pneumatic connection diameter4 x 6 mm tube connection
    Memory capacity2.5 gigabytes
    DisplayColor touchscreen 7’’
    Digital interfaces1 USB 2.0 and 1 Ethernet RJ45
    Storage conditions0 – 158°F/0 – 90% HR
    Terms of use0 – 104°F/10 – 90% HR
    O2 Oxygen measurementTechnology : Electrochemical
    Precision : +/- 1% relative
    T90 response time : < 1 s
    Resolution : 0.01%
    Average service life : 18 months in air
    CO2 Carbon Dioxide measurementTechnology : NDIR
    Accuracy : +/- 2% full scale
    Resolution : 0,1%
    T90 response time : 7s
    Average service life : 10 years
    Blocked circuit detectionyes
    Pump suction controlyes
    Compensation for atmospheric pressure variationsyes
    Results storageyes
    USB Connectionyes
    Touchscreenyes
    TraceabilityFormat, line, operator, batch number, comment at the end of the test
    Remote ConnectionRemote control possible for remote maintenance
    Network connection (Ethernet socket)yes
    Automatic measurement triggeryes
    OptionsExternal router LAN-WAN-3G for remote access
  • Recommended Accessories
    • Can piercer
    • Needle arm support
    • USB – 1D barcode reader
    • Detectable stylus for the touchscreen
    • Needle cleaning tool
  • Every Oxylos Delivered With
    • 1 IP67 Case 430x286x158 mm
    • 1 Sampling kit
    • 12 Needles 0.8×15 mm – Stainless steel
    • 2 Filters
    • 1 000 Gas septums
    • 1 Stylus for the touchscreen
    • 1 Power supply
    • Calibration certificate
    • User manual
    • 1 USB Key
