Exos

Exos

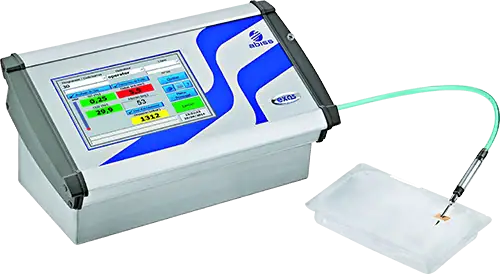

The Exos from Abiss is a system for measuring micro-leaks and improving food package seal integrity.

Available in 3 Models

  • Leak
  • Leak + O2
  • Leak + O2 + CO2

Request Quote

EXOS LEAK

The EXOS LEAK allows you to measure airtightness for vacuum packaging and pneumatic circuits. This measurement device also checks the seal resistance with a burst test function. These two tests can be carried out in quick succession on the same package. The sensitivity threshold is 5 microns in terms of perforation size (Equivalent size of a bacterium is between 1 and 10 microns)

LEAK – Data Sheet

BENEFITS – ALL MODELS

  • Meets standards:
    DIN 55508-1: measures flow rate at constant pressure
    ASTM F1140: seal strength
    ASTM F2054: burst test
  • Measures with low pressure
  • Breathability measurement (micro-perforated films)
  • Tested on vacuum packaging
  • Fully traceable via an internal spreadsheet
  • Excessive pressure can be fitted manually or automatically
  • Remote maintenance 7 days a week, with remote connection available

EXOS LEAK + O2

The EXOS LEAK/O2 allows you to measure the percent of O2 and the airtightness for all types of packaging, containers and pneumatic circuits. This measurement device also checks the resistance of the seal by performing a burst test. These three tests can be carried out in quick succession on the same packaging. The EXOS lets you inspect the integrity of your packaging, and can be used in the laboratory as well as during the manufacturing process.

LEAK – Data Sheet

ALL OF THE ABOVE BENEFITS +

  • Combines 5 measurements in 1 single test:
    • O2 gas analysis
    • Micro-leaks down to 5 μm
    • Creep test (A&B)
    • Burst Test

EXOS LEAK + O2 + CO2

The EXOS LEAK/O2/CO2 allows you to measure the rate of O2/CO2 and the airtightness for all types of packaging, containers and pneumatic circuits. This measurement device also checks the resistance of sealing using a bursting test. These three tests can be carried out in quick succession on the same packaging. The EXOS lets you inspect the integrity of your packaging, and can be used in the laboratory as well as during the manufacturing process.

LEAK – Data Sheet

ALL OF THE ABOVE BENEFITS +

  • Combines 5 measurements in 1 single test:
    • O2 gas analysis
    • CO2 gas analysis
    • Micro-leaks down to 5 μm
    • Creep test (A&B)
    • Burst Test

Exos

Request Quote

  • Specifications
    Ingress protection of enclosureIP 54
    Measurement deviceBench-mounted
    EnclosureAluminium and inox
    Weight11 lbs.
    Width13.38 in
    Height6.69 in
    Depth9.05 in
    Power100-240VAC -50/60Hz – 63W
    Feed pressure60 to 115 PSI (dry and oil free) filtered at 20μm
    Inlet pneumatic connection diameter4 x 6 mm tube connection
    Memory capacity4 to 32 gigabytes
    DisplayColor touchscreen 7’’
    Digital interfaces1 USB 2.0 and 1 Ethernet RJ45
    Storage conditions0 – 158°F/0 – 90% HR
    Terms of use0 – 104°F/10 – 90% HR
    O2 Oxygen measurementTechnology : Electrochemical
    Precision : +/- 1% relative
    T90 response time : < 1 s
    Resolution : 0.01%
    Average service life : 18 months in air
    CO2 Carbon Dioxide measurementTechnology : NDIR
    Accuracy : +/- 2% full scale
    Resolution : 0,1%
    T90 response time : 7s
    Average service life : 10 years
    Pressure measurementyes
    Leak measurementTechnology : Mass flowmeter
    Precision : +/- 0.8% full scale (μm) ; +/- 1% of the reading + 0.1 ml/min
    Resolution : 0.1ml/min – 1μm
    Measurement : 0.1-500 ml/min – 15 μm to 500 μm (from 5 μm with the lab option)
    Test pressure : From 10 to 500 mbar +/- 1mbar
    Flow : Filling: 4200 ml/min
    Compressed air supply : 4 to 8 Bar (dry and oil free filtred to 20 µm)
    Analytical curves (displayed and recordable)
    Burst testTechnology : Barometric
    Accuracy : +/- 0,5% full scale
    Resolution : 1mbar
    Flow scales : 0,2 – 1,4 bar
    Quick inflating flow : Minimum 250l/h
    Burst pressure : Up to 1,4 bar
    Analytical curves (displayed and recordable)
    or
    Creep test
    Technology : Barometric
    Accuracy : +/- 0,5% full scale
    Resolution : 1mbar
    Measurement : 200 – 500 mbar
    Pressure : 500 mbar
    Flow : Filling: 4200 ml/min
    Analytical curves (displayed and recordable)
    Blocked circuit detectionyes
    Pump suction controlyes
    Compensation for atmospheric pressure variationsyes
    Results storageyes
    USB Connectionyes
    Touchscreenyes
    TraceabilityFormat, line, operator, batch number, comment at the end of the test
    Remote ConnectionRemote control possible for remote maintenance
    Network connection (Ethernet socket)yes
    Automatic measurement triggeryes
    Options3G router + HMI Advanced
    Waterproof RJ45 Ethernet port
  • Recommended Accessories
    • 2.5 L buffer tank with check valve
    • Calibrated leak
    • USB – 1D barcode reader
    • Filter for the expansion valve and oil
    • separator of the compressed air supply
    • Detectable stylus for the touchscreen
    • Can Piercer to pierce metal or rigid membrane packaging
    • Secured needle holder
    • Needle arm support
    • Needle cleaning tool
  • Every Oxylos Delivered With
    • 1 Carry case IP67 : 22 x 17 x 8.5 in
    • 1 Sampling kit
    • 2 Needles
    • 2 Filters
    • 1 Stabilization tank
    • 1 000 Septums leak
    • 1 Flexible probe holder
    • 1 Metal detected stylus
    • 1 Pressure regulator compressed air
    • 1 Power supply
    • 1 Calibration certificate
    • 1 User manual
    • 1 USB key
    • 1 3G key
